PBT 605

Short Description:

Product Detail

Send Message

PBT it is one of the advanced engineering plastics with high rigidity, high toughness, good fatigue resistance, weather resistance, low water absorption rate (all the properties maintain under moisture atmosphere including electrical properties), high dielectric ability, good electrical capacity, size stability, good formability, excellent anti-creep ability under high impact, and good chemical properties as well. It is easy to process into glass-fiber reinforced and flame-retardant products. PBT/PET can be ultrasonic welded and easily post-processed.

●High toughness, high modulus, low creep

●Good dielectric strength

●Good dimensional stability

●Low water absorption rate, good hydrolysis resistance

●Good heat resistance, low coefficient of thermal expansion

●High impact strength

●Resistance to Thermal aging

●Easy to process

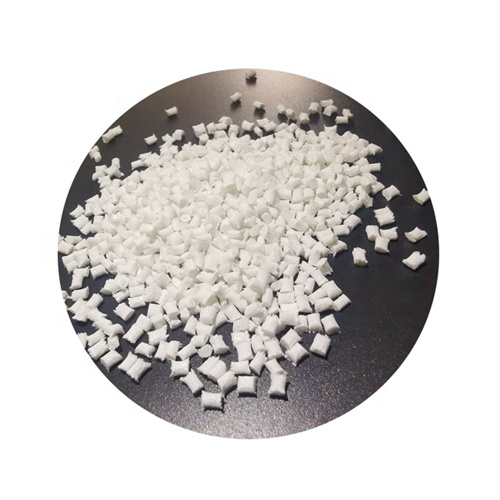

PBT 605 Flame-retardant Polybutylene Terephthalate
Characteristics	Meet the environmental standards of RoHS and IEC, high gloss, UL94 V-0 flame retardant,good light shading and ageing resistance.
Applications	Plug in fluorescent light, electrical equipment shell, etc.
Properties (23℃)	Typical Value[1]	Unit	Test Method
Mechanical
Tensile Stress	52	MPa	ISO 527
Tensile Strain	8	%	ISO 527
Flexural Stress	88	MPa	ISO 178
Flexural Modulus	3000	MPa	ISO 178
Izod Impact Strength (Notched)	6	kJ/m2	ISO 180
Other
Density	1.47	g/cm3	ISO 1183
Volume Resistivity	1E14	Ohms·cm	IEC 60093
Flammability	V-0	Class	UL-94
Whiteness	95	-	-
Mold Shrinkage	1.5-1.9	%	ISO 294
Molding Process[2]
Drying Condition	Temperature		120-140℃
	Time		2-4h
Mold Temperature	120℃
Barrel Temperature	Nozzle	Front	Middle	Rear
	240-260 ℃	230-260 ℃	230-250 ℃	220-240 ℃
Note： [1] These figures are only intended as a guide and should not be used in preparing specifications. [2] The molding process is only for reference and can be adjusted according to different models and products.

liquid

Quality:
Our company is a professional production of Plastic raw material and Metal for many years, our products have exported to Germany, Spain, UK, USA, Australia, Middle East, and so on other countries, and we have got very good feedback from our customers.so you can trust us.
And we are the manufactory, so you don’t need to doubt the quality.
Payment method: for example T/T, D/A, L/C, Westerm Union,other
1)We will ship the goods within 5days after get your payments.If you want to cancel or change order, please tell me within 24hours after you finish the payment…So we both can make the best of the bad bargain.
2)We will ship the goods that you order from us by HKEMS, DHL, UPS, TNT and EUB.We will decided to choose which courier depend on different countries.To find the best way to delivery the goods for you.
3)As usual you can get the goods with in 4-7days.If the goods were lost or not received for other reasons, please contact us immediately.

绿色详情页4

FAQ

Q1: Can i get some samples
A: Yes, we can supply the free sample, but the shipping cost be paid by our customers.

Q2: How to start orders or make payments
A: Proforma invoice will be sent first after confirmation of order, enclosed our bank information. Payment by T/T, Western Union,BTC,MoneyGram

Q3: How to confirm the Product Quality before placing orders
A:You can get free samples for some products,you only need to pay the shipping cost or arrange a courier to us and take the
samples. You can send us your product specifications and requests,we will manufacture the products according to your requests.

Q4:What’s your MOQ
A:Our MOQ is 1kg. But usually we accept less quantity such as 100g on the condition that sample charge is 100% paid.

Q5: How about delivery lead time
A:Delivery lead time: About 3-5 days after payment confirmed. (Chinese holiday not included)
